Installation guide

  1. Install Node.js from https://nodejs.org.
  2. Download the repo here.
  3. Unzip the folder, and open the terminal inside the unzipped architecture-tracer-main folder.
  4. Run these two commands one at a time:
    npm install
npm run dev
  5. Open the app site in your browser. (It should be in the pattern of http://localhost:XXXX/app/)

App components

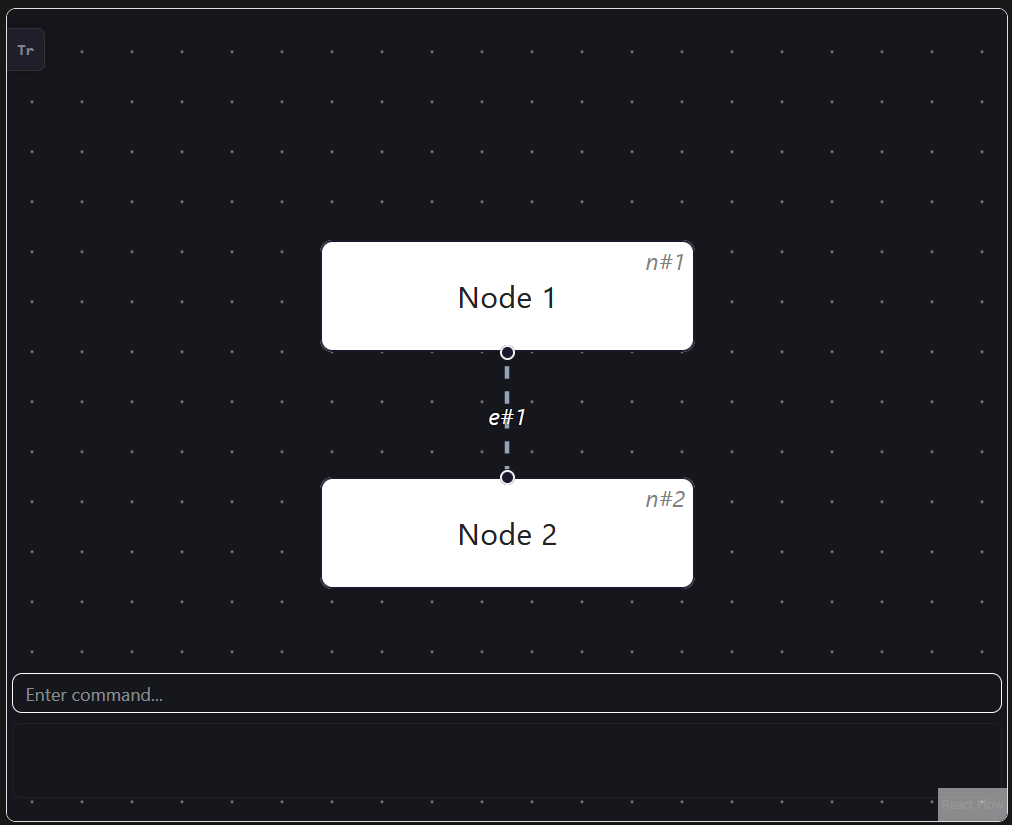

Ui

  • Nodes: Nodes will be indicated by white rectangular boxes, with their id on the top right corner. This may reference this id for commands involving nodes.
  • Edges: Edges will be indicated by white dashed lines, with their id overlayed on top. This may reference this id for commands involving edges.
  • Command box: The command box is always on the bottom of the app, and can be typed into to execute commands.
  • Response box: The response box below the command box will provide responses relevant to the last input command. The box and text will turn red to indicate errors.
  • Sidebar: The sidebar can be opened by clicking the “Tr” button on the top left. Opening it will display the simulation trace.

Commands

**Notes about the command format:** - Words in `SCREAMING_SNAKE_CASE` are parameters to be supplied by the user. e.g. in `add n/LABEL`, `LABEL` is a parameter, so you might write `add n/Database`. - Unrecognised commands or commands with incorrect formatting will result in an error message and be rejected by the app.

Adding a new edge: add n/

Adds a new node with the given label.

Format: add n/LABEL

Example:

  • add n/Internet: Creates a new node labelled “Internet”.

Adding a new edge: add e/

Adds a new edge connecting two nodes.

Format: add e/n#ID n#ID

Example:

  • add e/n#1 n#3: Connects the nodes with id 1 and 3 together.

Deleting a node or edge: delete

Delete a node or an edge using its id.

Format: delete n#ID or delete e#ID

Example:

  • del n#1: Deletes the node with id 1.
  • del e#3: Deletes the edge with id 3.

Begin/Continue a simulation trace: trace

If there is currently an ongoing simulation trace, progress to a given node if it is accessible. Else begins a simulation trace on the given node. During a simulation trace, the user may not add/delete nodes and edges to the architecture.

Format: trace n#ID

Example:

  • trace n#3 when a simulation trace is currently not in progress: Begin a simulation trace on the node with ID 3.
  • trace n#3 when a simulation trace is in progress, and the node with ID 3 is accessible to the current node: Progress to the node with ID 3.
  • trace n#3 when a simulation trace is in progress, however the node with ID 3 is currently inaccessible to the current node: An error message will be displayed as this is not a valid command under the current circumstances.

End the current simulation trace: trace end

Ends the current simulation trace, if any, allowing the user to begin a new simulation trace on a separate node.

Shift steps in the simulation trace: trace prev/trace next

trace prev will shift the trace to the previous step, while `trace next will shift the trace to the next step, if any are available.
